详细信息

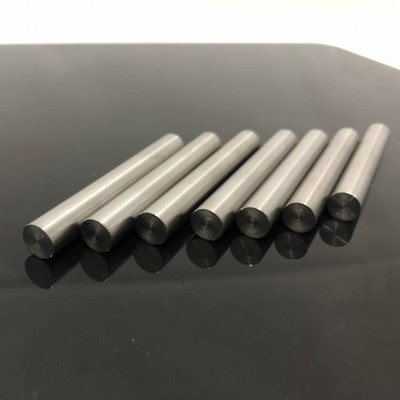

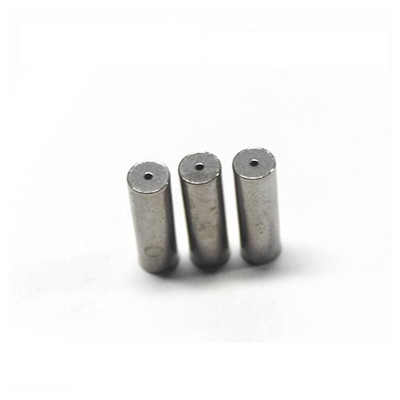

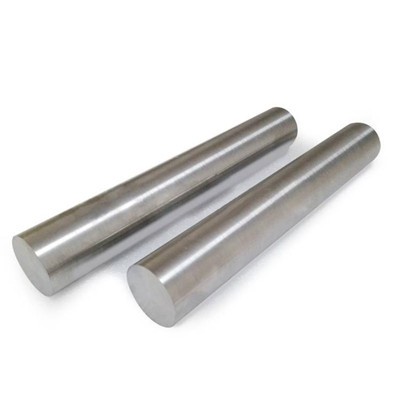

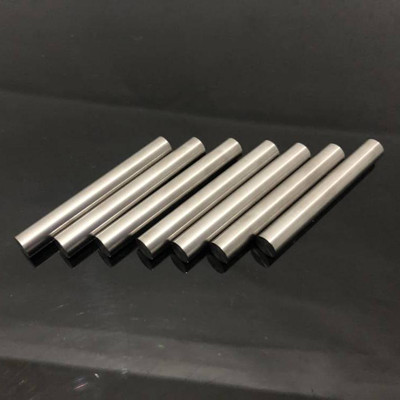

97钨镍铁圆柱产品详情：

1）比重大：一般比重为16.5-18.75g/cm3；
2）强度高：抗拉强度为700-1000Mpa；
3）吸收射线能力强：比铅高30-40%；
4）导热系数大：钨合金的导热系数为模具钢的5倍；
5）热膨胀系数小：只有铁或钢的1/2-1/3，
6）良好的可导电性能；无因为其良好的导电性能而广泛应照明和电焊行业
7）具有良好的可焊性和加工性。

8）株洲精钻可按您的要求生产各种形状、尺寸规格钨合金圆柱。

97钨镍铁圆柱的规格

1. 直径：2.0-100.0mm
2. 长度：50-1000mm
3. 密度：16.5-18.75g/cm3
4. 成分：钨含量：85-99%，W-Ni-Fe，W-Ni-Cu
5. 表面：烧结态，车光表面，磨光表面

Tungsten Alloy Cylinder Specification

1. Diameter: 2.0-100.0mm
2. Length: 50-1000mm
3. Density: 16.5-18.75 g/cm3
4. Composition: W content: 85-99%, W-Ni-Fe, W-Ni-Cu
5. Surface: Sintered surface, Forged surface, Ground surface

97钨镍铁圆柱的用途
97钨镍铁圆柱特别适汽车配重件，在模块上钻一个或者多个直径为25/64或者更大直径的洞，再填入所需数量的钨合金圆柱。然后将一个3/8 英寸长的销杆插入洞口。该产品还能加工成模具以及各种配重件，例如快艇配重件，车辆配重件，飞机配重件，直升机配重件，船用配重件和坦克配重件，等等。

Applications for Tungsten Alloy Cylinders

Tungsten alloy cylinders can be easily used for car weighting by drilling one or more 25/64"or larger diameter holes into the block and then inserting the desired number of cylinders. The hole can then be plugged with a piece of 3/8 inch dowel rod. The product also is manufactured as the parts of military defense, extrusion die, various counterweights, such as yacht counterweights,vehicle counterweights, airplane counterweights, helicopter counterweights, boat counterweights,tank counterweights, etc.Usually, tungsten alloy cylinder could be manufactured as the parts for military applications,

extrusion die and various kinds of counterweights.

 97钨镍铁圆柱性能表

Tungsten Alloy Cylinder Data Sheet
